Shuttle und FTS in Kooperation – Big Bag Handling in Kanallager und Produktionsversorgung
STILL GmbH



Erstmalig realisierte STILL das Zusammenspiel von halbautomatischen Shuttlefahrzeugen mit automatisierten FM-X Schubmaststaplern in einem Kanallager.
Zur Versorgung der Produktion holt ein Shuttle eine Palette.
Automatisch transportieren die FM-X die Big Bags zur Fördertechnik der Arbeitsbühne.
Mit RX 60 Staplern werden die Big Bags im Kanallager eingelagert.

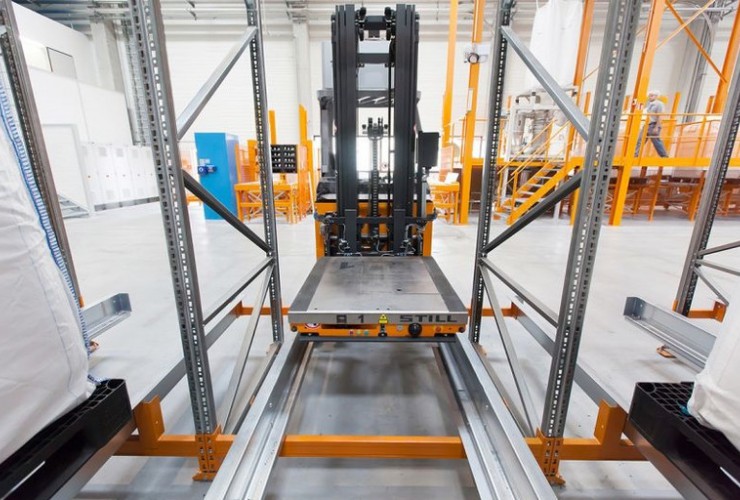

Zur Auslagerung der Big Bags setzt der FM-X das Shuttle millimetergenau im richtigen Kanal ab.
Der auszulagernde Big Bag wird auf der Übergabestation der Fördertechnik abgesetzt.
Perfekt funktioniert das Zusammenspiel der Fördertechnik mit dem Verschiebewagen und dem Stapelautomaten für die Leerpaletten.
Erstmalig realisierte STILL das Zusammenspiel von halbautomatischen Shuttlefahrzeugen mit automatisierten FM-X Schubmaststaplern in einem Kanallager.STILL GmbH
links
rechts



IFOY-Kategorie

Intralogistics Solutions

Zusammenfassung der Lösung

Zeit und Lagerplatz sind Geld. Deshalb kommt der optimalen Ausnutzung der vorhandenen Lagerfläche in der Intralogistik eine besondere Bedeutung zu. Durch den Einsatz eines hochverdichtenden Lagersystems lässt sich der vorhandene Raum optimal ausnutzen. Darüber hinaus setzt man in der Intralogistik vermehrt auf vollautomatisierte Systeme, um Lagerabläufe so effizient wie möglich zu gestalten. Werden beide Systemlösungen sinnvoll miteinander verbunden, wird ein Maximum an Effizienz in der Lagerhaltung erreicht.
Eine Form der genannten Kompaktlagersysteme ist das Kanallager-System. Das Prinzip ist ebenso einfach wie effizient: Ein Shuttle nimmt die Palette am Anfang einer Regalebene vom Stapler auf, fährt sie – während der Stapler die nächste Palette etwa aus dem LKW entlädt – in den Führungsschienen automatisch ans Ende des Ganges, setzt sie mit dem Tablaraushub auf den Lagerschienen ab und kehrt an den Anfang zurück, um die nächste Palette zu empfangen. Soll das Shuttle in einem anderen Kanal arbeiten, wird dies vom Stapler umgesetzt. Das Shuttle selbst wird über eine Fernbedienung gesteuert. Hierbei handelt es sich um halbautomatisierte Lösungen, bei denen die Paletten Shuttle auf einen menschlichen Bediener angewiesen sind. Diese Lösungen basieren auf der Schnittstelle "Mensch-Maschine" und sind entsprechend fehleranfällig. Zur Integration eines Shuttles in ein vollautomatisches Gesamtsystem wird eine Schnittstelle benötigt, durch die ein Lagerverwaltungssystem die Shuttles steuern kann. Diese soll das vollautomatische Ein- und Auslagern in Kanälen möglich machen, die Interaktion zwischen Shuttle und automatisierten Flurförderzeugen erlauben und die "Mensch-Maschine"-Schnittstelle ersetzen. Die Fähigkeit des STILL PalletShuttle durch eine speziell für die Vollautomatisierung entwickelte Schnittstelle sowohl mit übergelagerten Lagerverwaltungssystemen als auch mit automatisierten Flurförderzeugen zu kommunizieren, ermöglicht die Installation von vollautomatischen Gesamtlösungen, wobei die Schnittstelle "Mensch-Maschine" entfällt. Dadurch werden Fehlbedienungen vermieden sowie die Transparenz und Rückverfolgbarkeit aller Warenbewegungen sichergestellt.
In nur neun Wochen realisierte STILL mit allen notwendigen automatischen Komponenten ein Rohstofflager für Kuraray Trosifol in Troisdorf bei Köln. Mit einem ausgeklügelten Materialflusskonzept kommunizieren erstmalig halbautomatische Shuttlefahrzeuge mit automatisierten Schubmaststaplern in einem Kanallager.

Kunde

KURARAY TROSIFOL

Umsetzungszeitraum

Von: 10.06.2014
Bis: 09.08.2014

Bewerbungsunterlagen

PDF-Datei zur Bewerbung: IFOY2015_Kuraray_DE.pdf
Video: STILL Komplettlösung bei Kuraray - Palletshuttle im Einsatz
